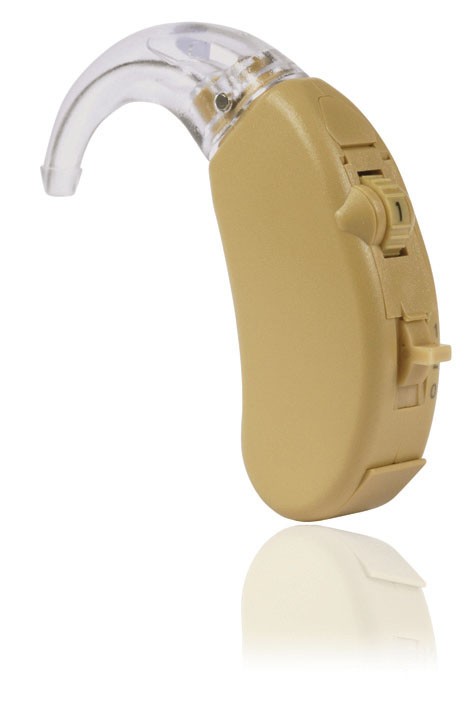

Puretone PT 70 DAC4 MX

Mini BTE Device With TRT

Thanks to its state of the art digital technology and advanced features, including 4 DSPchannels and up to 2 preprogrammed hearing programs, DAC4MX hearing systems deliver the highest hearing performance.



4 Channels

8 Bands

2 Programs

3 Position Switch (1, 2 & Off)

External Manual Scroll VC (14)

White Noise Generator (TRT)

Adaptive Feedback Manager+ (AFM+)

Low Battery Warning (Adjustable)

Program Switch Tones (Adjustable)

Crossover Frequency (Adjustable)

Telecoil

Expansion (Squelch)

Power On Delay (POD)



Battery Type



13



Options



Open Fit



Colours Available



Beige



Brown



Charcoal



Grey



Transparent



Nougat



Dimensions



28mm x 8.5mm x 11.8mm



Weight



2g (excluding battery)



Performance Figures



IEC 1180



ANSI S3.22











Acoustic Gain (50dB SPL)









HFA (dB)



0



0

at 1600Hz (dB)



67



56

Peak value (dB)



67



60

Max Output (110dB SPL)









HFA (dB SPL)



0



0

at 1600Hz (dB SPL)



129



119

Peak value (dB SPL)



131



124

Frequency range (Hz)



200-6000



200-5600

Harmonic Distortion (THD)









at 500Hz (%)



< 3



< 2

at 800Hz (%)



< 2



< 2

at 1600Hz (%)



< 1



< 1

Equivalent input noise (dB)



< 16



< 17

Power consumption (mA)



< 0.70



< 0.71

Battery size



13



13

Battery life (Hours)



380



380

Reference test gain (dB)



54



42

Operating voltage (V)



1.3



1.3

Telecoil sensitivity (dB SPL)



102



116

TRT White Noise Generator









Noise level (dB SPL)



120



120

Frequency range (Hz)



200-6000



200-5600
